HOW TO CREATE A PROGRAM
BASED ON THE B++ LIBRARY ?


COMPILATION


Before trying to create a program based on the B++ Library, you must configure and reach to compile the library. For more details, see the . To illustrate how to create a program, we will consider the Make Doc program of the B++ Library that semi automatically generates the documentation of the modules.

You first have to code your own functions, classes... You can put them in a module. For instance, the elements of the Make Doc program are located in the module Program/Make_doc. After that, you have to create the main function, the one that will start your program. For instance, the Make Doc program has a file called make_doc.cpp that must be located in the same folder as the options.hpp file (cf. ). This file contains:

#include <bpp/display/console.hpp>
#include <bpp/program/make_doc.hpp>

using namespace bpp;

int main(int argc,const char * argv[]) {
 int                       result;
 displayConsole::clDisplay display;

 standard::openLibrary(display);
 result=programMakeDoc::run(argc,argv);
 standard::closeLibrary();
 exit(result);
}

To use any element of the B++ Library, you first need to initialize the library with the standard::openLibrary function. The parameter given to the function is an object that represents the display. Here we choose the display contained in the Display/Console module, but you can define your own display (cf. ). When you do not need the library anymore, you have to call the standard::closeLibrary function to terminate properly the library.

To build the program, you have different solutions. If you use a development environment, make a project that contains the file with the main function, the files describing your program and the libraries of the B++ Library you need. The other way is to create a makefile. We propose the following.

OPTIONS_EXE =

MAKE_DOC_DEPENDENCY = -lbpp_meta_model -lbpp_text_format \
                      -lbpp_calendar -lbpp_standard \
                      -lbpp_display

COMPILE_EXE = $(GCC) -L$(LIBRARY_PATH) $(OPTIONS_EXE) \               $(OPTIONS_THREAD) $(OPTIONS_GLPK) $(OPTIONS_CPLEX)

MAKE_DOC_OBJECTS = $(OBJECTS_PATH)/make_doc.$(OBJ) \
 $(OBJECTS_PATH)/bpp/program/make_doc/console.$(OBJ)

make_doc.exe : $(MAKE_DOC_OBJECTS)
     $(COMPILE_EXE) $(MAKE_DOC_OBJECTS) \
      $(MAKE_DOC_DEPENDENCY) -o $@

Here are some comments on the makefile.

OPTIONS_EXE Compilation options given to the compiler.
MAKE_DOC_DEPENDENCY List of the libraries you need to compile your program. You have to put in it all the B++ Library modules you use in your program.
COMPILE_EXE Command to compile and link the program.
MAKE_DOC_OBJECTS List of the objects you need to link your program.
make_doc.exe Rule to build the program.

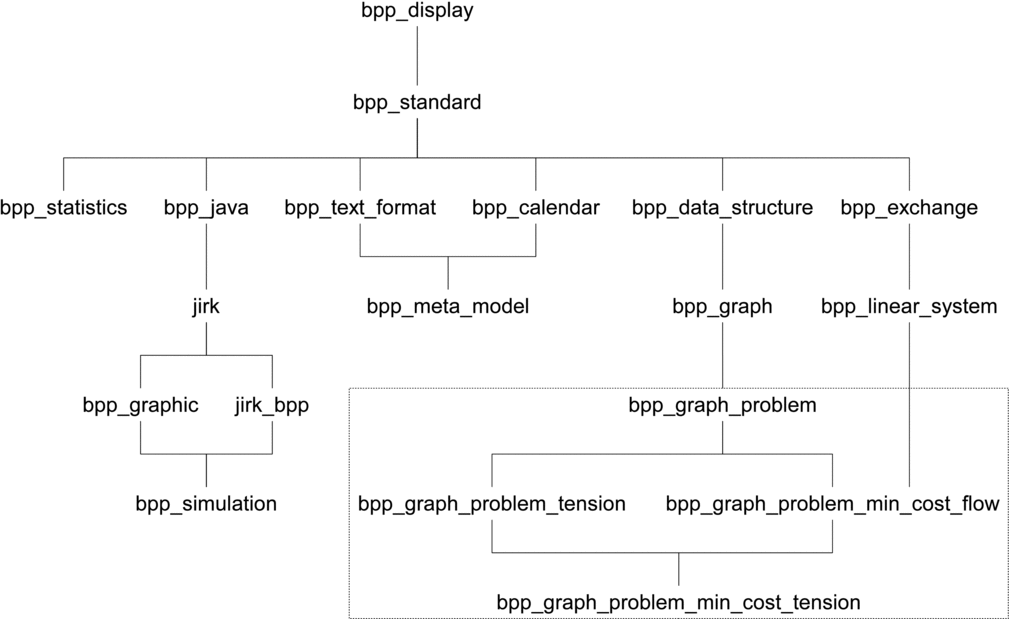

To determine the list of the libraries you need to compile a program (e.g. MAKE_DOC_DEPENDENCY), here is a diagram. It represents all the libraries of the B++ Library and their dependency.

When your program uses a module, it actually needs the library containing the implementation of the module and all the libraries it depends on. For instance, the Make Doc program uses Meta_model so needs bpp_meta_model and the libraries it depends on, meaning bpp_text_format, bpp_calendar, bpp_standard and bpp_display. In the case you use static libraries, the order of the libraries in the command line may be important. With GNU compilers, we recommend you to list them from the lower library in the hierarchy (e.g. bpp_meta_model) to the higher one (e.g. bpp_display). For more details on how to create a program, see the examples in the library folder.


RUNNING


To be run, a program needs an initialization file. Its name and location is settled in the Display/Console module (cf. ). By default, the file is called bpp_library.ini and is located in the folder pointed by the environment variable BPP_TOOLS (or BPP_TESTING if the library is compiled in the testing mode). The library needs external parameters stored in this file. Here is a list of these parameters. All of them are not always needed, it depends on the modules the program effectively uses.

ampl_location Full name and location of the AMPL software. Put dummy.exe if this software is not available in your environment. Requested only if the AMPL_YES option is activated in the options.hpp file.
class_path List of paths where the Java class files are searched. Requested only if the JAVA_NATIVE_INTERFACE_YES option is activated in the options.hpp file.
cplex_location Full name and location of the CPLEX software. Put dummy.exe if this software is not available in your environment. Requested only if the CPLEX_YES option is activated in the options.hpp file.
data_location Location of the data needed by the library.
default_html_template Full name and location of the file containing a template of HTML document needed to generate HTML files.
epsilon Maximum positive real number that is considered to be equal to zero.
information_displayed Indicates if detailed information must be displayed (yes or no).
java_maximum_heap_size Maximum heap size of the Java Virtual Machine (in megabytes), usually set to 16 Mb. Requested only if the JAVA_NATIVE_INTERFACE_YES option is activated in the options.hpp file.
java_minimum_heap_size Initial heap size of the Java Virtual Machine (in megabytes), usually set to 1 Mb. Requested only if the JAVA_NATIVE_INTERFACE_YES option is activated in the options.hpp file.
java_virtual_machine_location Full name and location of the Java Virtual Machine dynamic library. Put dummy.dll if the library is not available in your environment. Requested only if the JAVA_NATIVE_INTERFACE_YES option is activated in the options.hpp file.
random_seed Seeds of the random numbers generator. 0 means that the program will choose itself a seed based on the internal clock of the computer.
temporary_location Location where temporary files will be written.
testing_location Location where the testing results will be placed. Requested only if the TESTING_MODE option is activated in the options.hpp file.
time_zone Time zone of the local time.

For more details, see the examples in the library folder.
